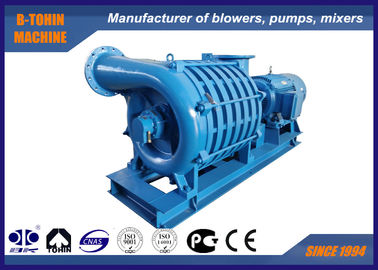

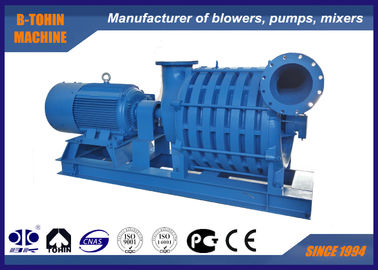

70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor

70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor

    • 70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor
    • 70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor
  • 70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: BK
    Sertifika: ISO9001/ISO14001
    Model Number: D30-1.7

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1 set
    Fiyat: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 20-40 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS per month
    İletişim
    Detaylı ürün tanımı
    Hava Kapasitesi: 30m3 / dakika Tahliye diferansiyel basıncı: 70KPA
    Motor gücü: 55kw Deşarj deliği: DN200 (8” )
    Soğutma türü: Su Tahrik tipi: Kavrama
    Uygulama: kanalizasyon arıtma, eritme fırını, kömür hazırlama tesisi, maden flotasyon, kimyasal gaz, vakum san
    Vurgulamak:

    multi stage centrifugal blowers

    ,

    high pressure centrifugal blower





    70KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor






    About D series multi-stage centrifugal blower


    B-TOHIN is a professional manufacturer of various kinds of blowers. The multi-stage centrifugal blower we produced contains blower main body and matched motor. Also control system is available and can be customized upon customers' requests..



    Specifications



    Model No.

    D30-1.7

    Discharge differential pressure

    70KPA

    Air capacity

    30m3/min

    Motor power

    55KW

    Shaft power

    43KW

    Motor type

    380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option






    Features



    1. Compact structure, elegant appearance, high stability,  convenient installation and maintenance



    2. Smooth operation:optimized high-efficiency impeller decreases the axial force to the minimum.  And after static and dynamic balance, the blower can run more smoothly



    3. Low noise: no mechanical friction and reasonable blade curve ensures low noise



    4. Oil-free Blower



    5. Impeller is featured with special composite linear to reduce  internal leakage and improve volumetric efficiency.



    6. Easy to be adjusted



    7. Inlet rings are equipped for impeller of every stage, and labyrinth seals are set between stages and at the two ends of  housing for preventing gas leakage.



    8. air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.



    9.  Bearing temperature alarm



    10.  Blower and motor connected by coupling, other connection methods available according to different technique requirements.




    Structure of blower main body



    70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor 0










    Assembling drawing of blower package



    70KPA Multistage Centrifugal Blower for Mining flotation , centrifugal compressor 1



    Standard supply of scope



    1. Blower main body

    2. Inlet muffler (with air filter)

    3. Public base for motor and blower(including coupling cover)

    4. Inlet manual butterfly valve

    5. Motor

    6. Pressure gauge

    7. Mounting bolts and connection accessories

    8. Check valve
