3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas

Ürün ayrıntıları:

Place of Origin: China
Marka adı: BK
Sertifika: ISO9001/ISO14001
Model Number: D50-1.8

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 set
Fiyat: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20-40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 10 SETS per month
Şimdi başvurun
Detaylı ürün tanımı
Air capacity: 50m3/min Discharge differential pressure: 80KPA
Motor power: 90KW Discharge bore: DN200(8”)
Cooling type: Water Driven type: Coupling
Application: sewage treatment, smelting furnace, coal preparation plant, mine floatation, chemical gas, vacuum industry, and other gas conveying, etc.

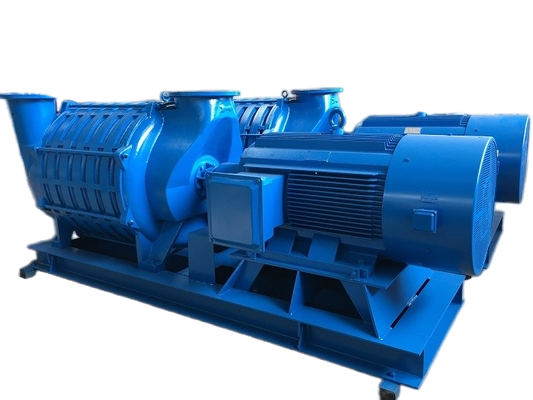

3000m3/h  Multistage Centrifugal Blower, air generator for sewage aeration






About D series multi-stage centrifugal blower


D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.

.



Specifications



Model No.

D50-1.8

Discharge differential pressure

80KPA

Motor power

90KW

Air capacity

50m3/min

Motor type

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option






Features

  • Compact structure, elegant appearance, high stability, convenient installation and maintenance

  • Smooth operation

  • Low noise

  • Oil-free Blower

  • Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.

  • Easy to be adjusted

  • Inlet rings are equipped for impeller of every stage, and  labyrinth seals are set between stages and at the two ends of  housing for preventing gas leakage.

  • air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.

  • Two flow direction for option : vertical and horizontal

  • Blower and motor connected by coupling, other connection methods available according to different technique requirements.




Structure of blower main body



3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas








Assembling drawing of blower package





3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas



Standard supply of scope



1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve






Dimensions of blower



Horizontal flow direction 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas
Vertical flow direction 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas 3000m3/h Centrifugal Aeration Blowers Water Treatment , Chemical Gas



1. blower base   2. blower main body   3. inlet silencer   4. butterfly valve   5. coupling   6. electric motor



Model Size(mm)
A B C
D50-1.8 1246 1285 2630
