65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

    • 65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower
  • 65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: BK
    Sertifika: ISO9001/ISO14001
    Model Number: D40-1.65

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1 set
    Fiyat: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 20-40 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS per month
    İletişim
    Detaylı ürün tanımı
    Hava Kapasitesi: 40m3 / dakika Tahliye diferansiyel basıncı: 65KPA
    Motor gücü: 75KW Deşarj deliği: DN200 (8” )
    Soğutma türü: Su Tahrik tipi: kemer
    Uygulama: kanalizasyon arıtma, eritme fırını, kömür hazırlama tesisi, maden flotasyon, kimyasal gaz, vakum san
    Vurgulamak:

    multi stage centrifugal blowers

    ,

    centrifugal air blower





    65KPA Multistage Centrifugal Blower for Mining flotation, centrifugal compressor






    About D series multi-stage centrifugal blower


    • Conveying medium: clean air, natural gas, bio gas, methane, hydrogen, nitrogen, etc.
    • Material of impeller: casting steel & aluminum alloy
    • Cooling method: air cooling or water cooling
    • Driving method:  belt transmission
    • Application: Water and waste water treatment, vacuum dust cleaning, air knife drying, the flotation and separation, zinc plating and electroplating, oxygen filling, paper making and printing, and air combustion etc. fields.






    Specifications



    Model No.

    D40-1.65

    Discharge differential pressure

    65KPA

    Air capacity

    40m3/min

    Motor power

    75KW

    Shaft power

    58KW

    Motor type

    380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option






    Features



    Adopt optimizing design to the impeller and the blower casings to minimize the flow loss.



    Use sealing diversion technology to the inlet of the impeller to improve the inlet flow ability.





    Apply flow analysis technique to optimize the blower performance and improve the stage efficiency to above 78%.



    Apply 3D Flow Impellers to some models of C blowers.



    Carry out strict dynamic balance to get low vibration, low noise, and high reliability.



    Select advanced blower structure design to make an easy installation, operation and maintenance.

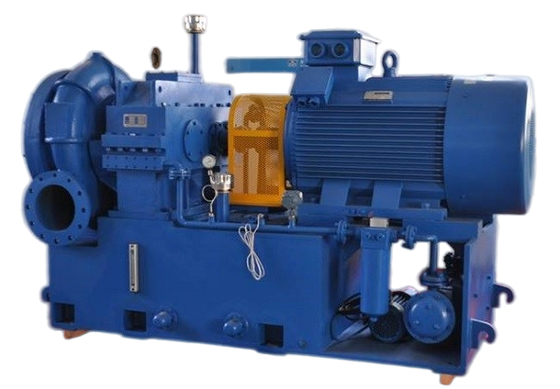

    Structure of blower main body



    65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower 0

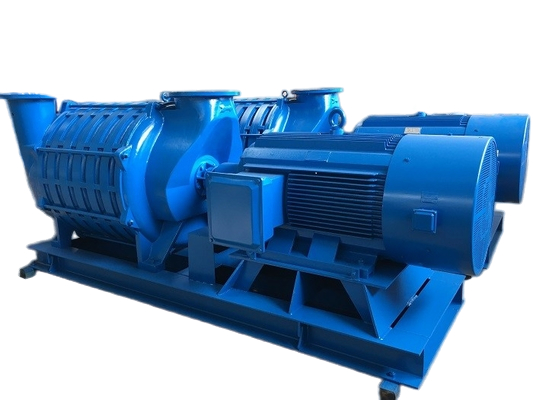

    Assembling drawing of blower package



    65KPA Multi stage Centrifugal Blowers for air combustion , centrifugal air fan blower 1



    Standard supply of scope



    1. Blower main body

    2. Inlet muffler (with air filter)

    3. Public base for motor and blower(including coupling cover)

    4. Inlet manual butterfly valve

    5. Motor

    6. Pressure gauge

    7. Mounting bolts and connection accessories

    8. Check valve
